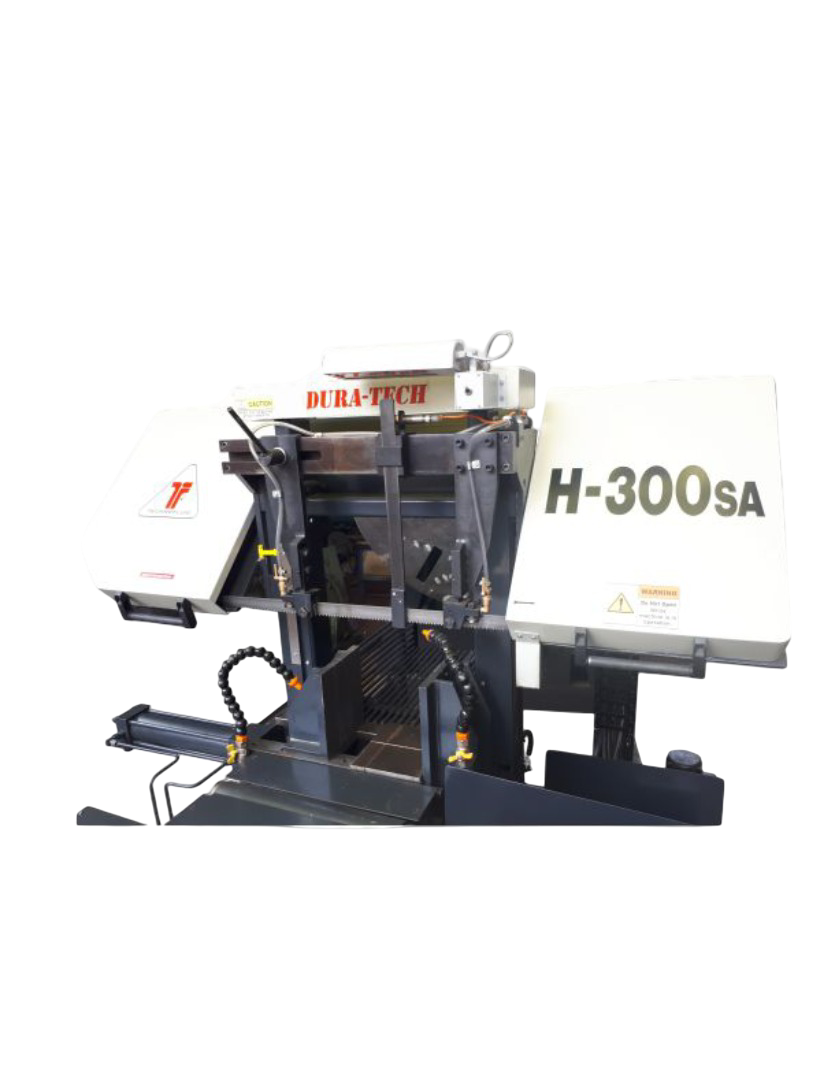

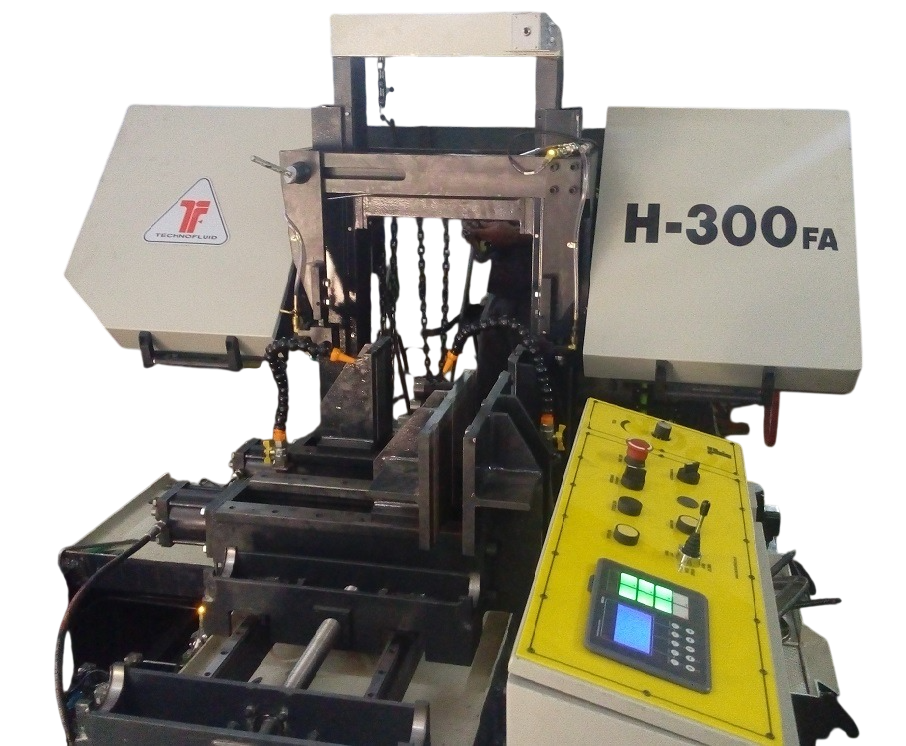

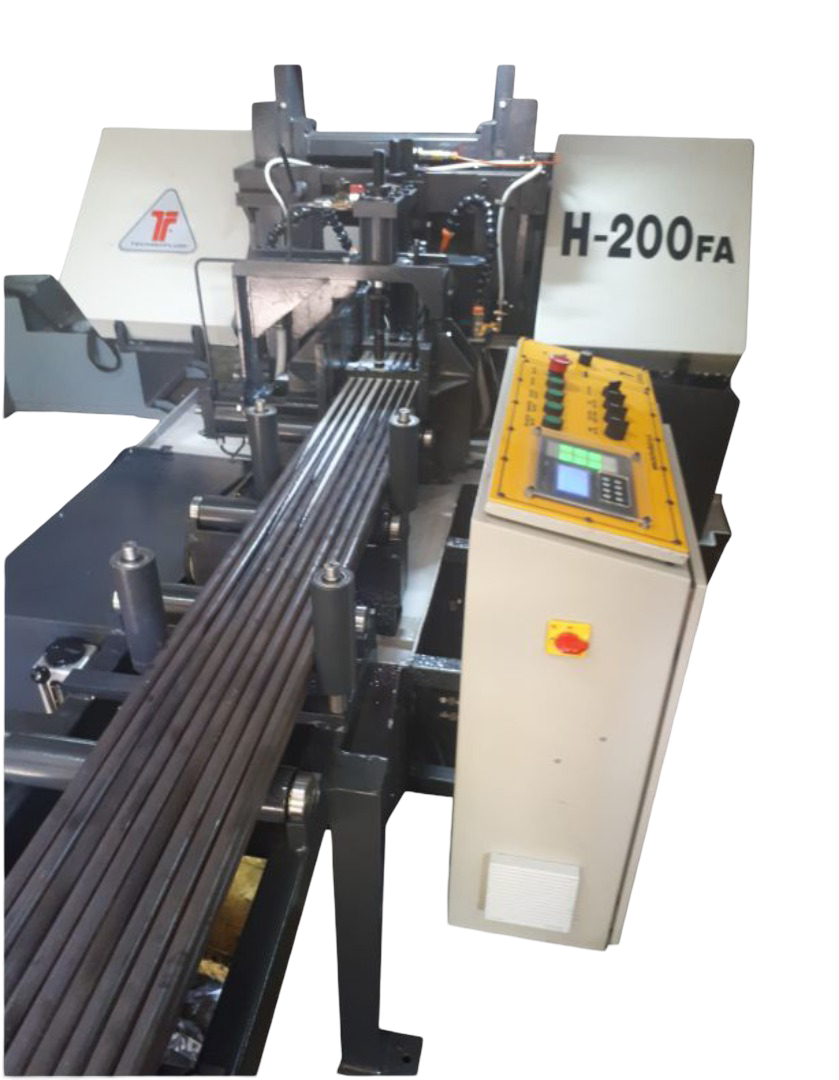

Fully Automatic Horizontal Bandsaw
The Fully Automatic Horizontal Bandsaw is designed for precision, performance, and durability. It features a rugged column design and advanced hydraulic and electronic controls for smooth and accurate cutting operations. Ideal for production environments requiring consistent, efficient, and high-quality cuts across various materials.
A long, continuous, toothed metal blade is stretched and rotated between two or more wheels. The material to be cut (workpiece) is placed horizontally on a workbench or roller conveyor and secured with a hydraulic clamping vice. Once the desired cutting parameters (length, number of cuts) are programmed into the machine's numerical control (NC) system, the automatic feed mechanism pushes the material forward.
Technical Specifications – Fully Automatic Horizontal Bandsaw
| Specification | H160 S/FA | H200 S/FA | H300 S/FA |
|---|---|---|---|
| Capacity (Round) | 160 mm (6") | 200 mm (8") | 300 mm (12") |
| Capacity (Square) | 160 × 160 mm (6" × 6") | 200 × 200 mm (8" × 8") | 300 × 300 mm (12" × 12") |
| Blade Speed | 25 – 100 m/min (Infinitely Variable) | ||
| Blade Drive Motor | 1.5 kW (2 HP) | 2.2 kW (3 HP) | 3.7 kW (5 HP) |
| Hydraulic Pump Motor | 0.75 kW (1 HP) | 1.5 kW (2 HP) | 2.2 kW (3 HP) |
| Coolant Pump Motor | 0.1 kW (1/8 HP) | 0.2 kW (1/4 HP) | 0.2 kW (1/4 HP) |
| Blade Size (mm) | 3000 × 27 × 0.9 | 3505 × 34 × 1.1 | 3760 × 34 × 1.1 |
| Shuttle Bar Feed (Single Feed) | 300 mm (12") | 300 mm (12") | 300 mm (16") |
| Multiple Feed | 300 mm × 9 times | 300 mm × 9 times | 300 mm × 9 times |
| Machine Weight | 1500 kg (3345 lbs) | 1800 kg (4020 lbs) | 2100 kg (4685 lbs) |
